德国倍加福KCD2-UT2-EX1温度安全栅接线图

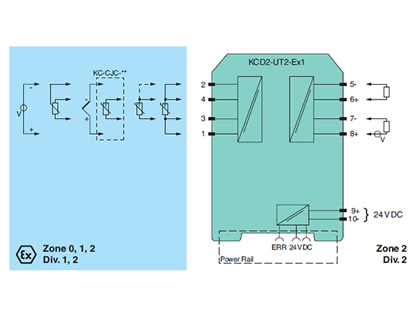

德国倍加福KCD2-UT2-EX1温度安全栅接线图如下：

KCD2-UT2-EX1安全栅是倍加福最常用的温度转换安全栅。

支持多种温度传感器信号输入（包括RTD热电阻，THC热电偶和滑块电阻），输出4-20mA信号。

RTD type Pt10, Pt50, Pt100, Pt500, Pt1000 (EN 60751: 1995)

type Pt10GOST, Pt50GOST, Pt100GOST, Pt500GOST, Pt1000GOST (6651-94)

type Cu10, Cu50, Cu100 (P50353-92)

type Ni100 (DIN 43760)

Measuring current approx. 200 μA with RTD

Types of measuring 2-, 3-, 4-wire connection

Lead resistance ≤ 50 Ω per line

Measurement loop monitoring sensor breakage, sensor short-circuit

Thermocouples type B, E, J, K, N, R, S, T (IEC 584-1: 1995)

type L (DIN 43710: 1985)

type TXK, TXKH, TXA (P8.585-2001)

Cold junction compensation external and internal

Measurement loop monitoring sensor breakage

Potentiometer 0 … 20 kΩ (2-wire connection), 0.8 … 20 kΩ (3-wire connection)

Voltage selectable within the range -100 … 100 mV

Input resistance ≥ 1 MΩ (-100 … 100 mV)
